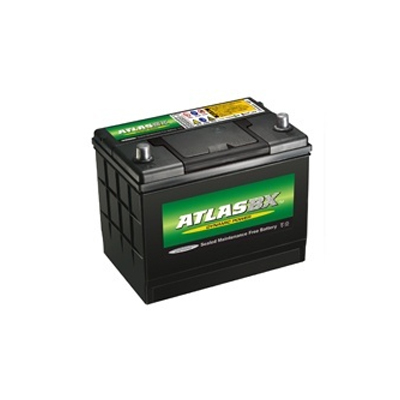

    Dynamic Power

  • • 100% maintance free
    • Enveloped Separator for low electric resistance Reliable starting power

    • Special Tissue for improvement of durability
    • Safety and reliability due to restraint to an inflow of outside sparks
    • Ultramicro fiber & Special tissue to increase durability of plate by reducing aging –rate of active material.
    • Reliable starting power
    • Excellent electrical performance (Minimum-self discharge)

JIS Gr.No Catalogue No.
 CAPACITY CCA(SAE)
 Dimension(mm) Layout Terminal Hold-down
20HR L W H TH
B19 MF40B19 35 330 187 127 200 220 0 B 　
B19 MF42B19 38 350 187 127 200 220 0 B 　
B19 MF44B19 40 370 187 127 200 220 0 B 　
B24 MF50B24 45 400 234 127 200 220 0 B 　
B24 MF55B24 45 430 234 127 200 220 0 B 　
B24 MF60B24 48 460 234 127 200 220 1 A 　
D20 MF50D20 50 450 200 172 200 220 0 A B1
D23 MF55D23 60 550 230 172 200 220 0 A 　
D23 MF75D23 65 580 230 172 200 220 0 A 　
D23 MF85D23 68 600 230 172 200 220 0 A 　
D26 MF48D26 50 450 257 172 200 220 0 A 　
D26 MF55D26 60 550 257 172 200 220 0 A 　
D26 MF75D26 65 580 257 172 200 220 0 A 　
D26 MF80D26 70 600 257 172 200 220 0 A 　
D26 MF90D26 72 630 257 172 200 220 0 A 　
D31 MF65D31 70 600 302 172 200 220 0 A 　
D31 MF75D31 75 660 302 172 200 220 0 A 　
D31 MF95D31 80 670 302 172 200 220 0 A 　
D31 MF105D31 90 750 302 172 200 220 0 A 　
D31 MF115D31 95 830 302 172 200 220 0 A 　
E41 MF95E41 100 830 402 171 205 226 0 A 　
E41 MF115E41 110 900 402 171 205 226 1 A 　
33F MF100L 100 830 325 172 200 220 0 A B1
