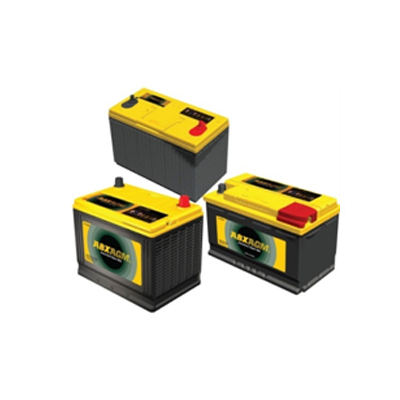

- Absolute Power & Safety ABX AGMBenefits of AGM for ISS
Excellent starting power
- Superior starting power, even at lower temperatures
- Extremely minimal electric resistance, causing a quick reaction
- More reaction surface area increasing energy density at the same size flooded batteries
The Extreme Durability
- Higher energy to restart the car
- 4 times the longest cycle life than flooded MF batteries
- High charge acceptance
Safety and Easy handling
- 100% leak & spill-proof 180°
- Vibration resistance
- Non-hazardous battery classification for land, sea, and air traffic
Application : Luxury sedans and ISS vehicles, Leisure purpose Vehicles(RV, Marine & Caravan)
* ISS (Idling Stop & Start) System
When the car comes to a stop in a traffic jam or at a red light and the gear of transmission is put neutral, the engine is automatically turn off. As soon as the driver put the ‘D’ mode at the auto transmission (first gear at the manual transmission), the engine restarts automatically. The ISS system offers reducing fuel consumption and CO₂emissions.
| JIS Gr.No | Catalogue No. |
CAPACITY | CCA(SAE) |
Dimension(mm) | Layout | Terminal | Hold-down | |||
| 20HR | L | W | H | TH | ||||||
| D26 | AX D26R | 75 | 720 | 260 | 172 | 200 | 220 | 1 | Standard | B1 |
| L3 | AX 570 760 | 70 | 760 | 277 | 174 | 190 | 190 | 0 | Standard | B13 |
| L4 | AX 580 800 | 80 | 800 | 314 | 174 | 190 | 190 | 0 | Standard | B13 |
| L5 | AX 595 850 | 95 | 850 | 352 | 174 | 190 | 190 | 0 | Standard | B13 |
| D26 | AX D26L | 75 | 720 | 260 | 172 | 200 | 220 | 0 | Standard | B1 |
| C31 | AX 31-800 | 90 | 800 | 330 | 172 | 218 | 242 | 2 | STUD | |
ABXAGM Technology AGM (Absorbent Glass Mat) Seperator Minimized electric resistance, half of flooded battery - Provide outstanding cranking power, due to the enhanced ionic transfer No plate movement and completely spill-and leak-proof - Installation may be at any angle position, even horizontally Addition of fine fiber to active material - Longer Life, Stabler Starting Power and Stronger durability HDA High Density Active-Material High pressure of glass mat acting against the plate - Prevent from shedding of active material and as a result, ensure longer life VRLA Sealed Construction advanced gas recombination Tech Valve Regulated Vent Plug - Enables to Stable cranking power - No acid leakage from vent plug One-Way Venting System - Provide constant partial pressure in each cell - 100% leak-proof and safe handling High Dimension of Grid Structure Provide more reaction surface area and increase of energy density Starved Electrolyte Structure - Increase of energy density, due to no free electrolyte Reinforced Case Design - Protects battery from vibration - Provides consistent element compression |
|
|||||||||||||||
