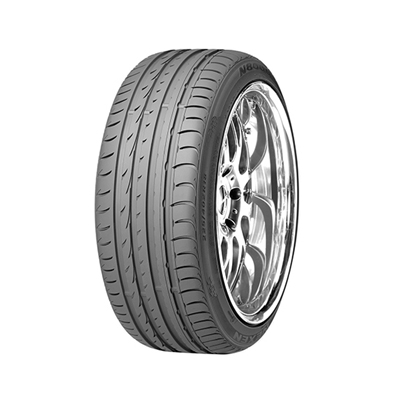

- N8000
- • Asymmetric tread design for optimized driving power
• Broad center block for high-speed driving power
• Excellent ride quality and draining only in N8000
 Tire Size |
 Max Load |
 RIM |
 Section Width |
 Overall Diameter |
 Tread Depth |
 SLR. |
S/W | UTQG | |||||||||||
| WEAR | TRAC. | TEMP. | |||||||||||||||||
| lbs | kgs | MEASURING | APPROVED | mm | inch | mm | inch | mm | /32'' | mm | |||||||||
| 20 inch |
* | 275/35R 20 | - | - | - | - | - | - | - | - | - | - | - | BSW | - | - | - | ||
| * | 245/45R 20 | - | - | - | - | - | - | - | - | - | - | - | BSW | - | - | - | |||
| 255/35ZR 20 XL | 97 | Y | 1609 | 730 | 9.0 | 8.5~10.0 | 260 | 10.2 | 686 | 27.0 | 7.9 | 10/32 | 324 | BSW | 280 | AA | A | ||
| 245/35ZR 20 XL | 95 | Y | 1521 | 690 | 8.5 | 8.0~9.5 | 248 | 9.8 | 680 | 26.8 | 7.9 | 10/32 | 322 | BSW | 280 | AA | A | ||
| 225/25ZR 20 ZL | 90 | Y | 1323 | 600 | 8.0 | 7.5~9.0 | 230 | 9.1 | 666 | 26.2 | 7.9 | 10/32 | 316 | BSW | 280 | AA | A | ||
| 19 inch |
* | 295/30R 19 | - | - | - | - | - | - | - | - | - | - | - | BSW | - | - | - | ||
| * | 255/30R 19 | - | - | - | - | - | - | - | - | - | - | - | BSW | - | - | - | |||
| * | 235/40R 19 | - | - | - | - | - | - | - | - | - | - | - | BSW | - | - | - | |||
| * | 225/40R 19 | - | - | - | - | - | - | - | - | - | - | - | BSW | - | - | - | |||
| 275/30ZR 19 XL | 96 | Y | 1565 | 710 | 9.5 | 9.0~10.0 | 278 | 10.9 | 649 | 25.6 | 7.9 | 10/32 | 307 | BSW | 280 | AA | A | ||
| 265/30ZR 19 XL | 93 | Y | 1433 | 650 | 9.5 | 9.0~10.0 | 271 | 10.7 | 643 | 25.3 | 7.9 | 10/32 | 304 | BSW | 280 | AA | A | ||
| 275/35ZR 19 XL | 100 | W | 1764 | 800 | 9.5 | 9.0~11.0 | 278 | 10.9 | 675 | 26.6 | 7.9 | 10/32 | 317 | BSW | 280 | AA | A | ||
| 255/35ZR 19 XL | 96 | W | 1565 | 710 | 9.0 | 8.5~10.0 | 260 | 10.2 | 661 | 26.0 | 7.9 | 10/32 | 311 | BSW | 280 | AA | A | ||
| 245/35ZR 19 XL | 93 | Y | 1433 | 650 | 8.5 | 8.0~9.5 | 248 | 9.8 | 655 | 25.8 | 7.9 | 10/32 | 309 | BSW | 280 | AA | A | ||
| 235/35ZR 19 XL | 91 | Y | 1356 | 615 | 8.5 | 8.0~9.5 | 241 | 9.5 | 647 | 25.5 | 7.9 | 10/32 | 306 | BSW | 280 | AA | A | ||
| 225/35ZR 19 XL | 88 | W | 1235 | 560 | 8.0 | 7.5~9.0 | 230 | 9.1 | 641 | 25.2 | 7.9 | 10/32 | 304 | BSW | 280 | AA | A | ||
| 255/40ZR 19 XL | 100 | Y | 1764 | 800 | 9.0 | 8.5~10.0 | 260 | 10.2 | 687 | 27.0 | 7.9 | 10/32 | 322 | BSW | 280 | AA | A | ||
| 245/40ZR 19 XL | 98 | W | 1653 | 750 | 8.5 | 8.0~9.5 | 248 | 9.8 | 679 | 26.7 | 7.9 | 10/32 | 318 | BSW | 280 | AA | A | ||
| 245/45ZR 19 XL | 102 | Y | 1874 | 850 | 8.0 | 7.5~9.0 | 243 | 9.6 | 703 | 27.7 | 7.9 | 10/32 | 328 | BSW | 280 | AA | A | ||
| 18 inch |
* | 265/40R 18 | - | - | - | - | - | - | - | - | - | - | - | BSW | - | - | - | ||
| * | 205/40R 18 | - | - | - | - | - | - | - | - | - | - | - | BSW | - | - | - | |||
| 255/35ZR 18 XL | 94 | Y | 1477 | 670 | 9.0 | 8.5~10.0 | 260 | 10.2 | 635 | 25.0 | 7.9 | 10/32 | 298 | BSW | 280 | AA | A | ||
| 215/35ZR 18 XL | 84 | Y | 1102 | 500 | 7.5 | 7.0~8.5 | 218 | 8.6 | 607 | 23.9 | 7.9 | 10/32 | 288 | BSW | 280 | AA | A | ||
| 245/40ZR 18 XL | 97 | Y | 1609 | 730 | 8.5 | 8.0~9.5 | 248 | 9.8 | 653 | 25.7 | 7.9 | 10/32 | 305 | BSW | 280 | AA | A | ||
| 235/40ZR 18 XL | 95 | Y | 1521 | 690 | 8.5 | 8.0~9.5 | 241 | 9.5 | 645 | 25.4 | 7.9 | 10/32 | 302 | BSW | 280 | AA | A | ||
| 225/40ZR 18 XL | 92 | Y | 1389 | 630 | 8.0 | 7.5~9.0 | 230 | 9.1 | 637 | 25.1 | 7.9 | 10/32 | 299 | BSW | 280 | AA | A | ||
| 255/45ZR 18 XL | 103 | W | 1929 | 875 | 8.5 | 8.0~9.5 | 255 | 10.0 | 687 | 27.0 | 7.9 | 10/32 | 319 | BSW | 280 | AA | A | ||
| 245/45ZR 18 XL | 100 | Y | 1764 | 800 | 8.0 | 7.5~9.0 | 243 | 9.6 | 677 | 26.7 | 7.9 | 10/32 | 315 | BSW | 280 | AA | A | ||
| 225/45ZR 18 XL | 95 | Y | 1521 | 690 | 7.5 | 7.0~8.0 | 225 | 8.9 | 659 | 25.9 | 7.9 | 10/32 | 308 | BSW | 280 | AA | A | ||
| 235/50ZR 18 XL | 101 | W | 1819 | 825 | 7.5 | 6.5~8.5 | 245 | 9.6 | 693 | 27.3 | 7.9 | 10/32 | 321 | BSW | 280 | AA | A | ||
| * | 235/60ZR 18 | 103 | H | - | - | - | - | - | - | - | - | - | - | - | BSW | - | - | - | |
| 17 inch |
* | 205/55R 17 | - | - | - | - | - | - | - | - | - | - | - | - | - | BSW | - | - | - |
| 245/40ZR 17 XL | 95 | W | 1521 | 690 | 8.5 | 8.0~9.5 | 248 | 9.8 | 628 | 24.7 | 7.9 | 10/32 | 293 | BSW | 280 | AA | A | ||
| 235/40ZR 17 XL | 94 | W | 1477 | 670 | 8.5 | 8.0~9.5 | 241 | 9.5 | 620 | 24.4 | 7.9 | 10/32 | 290 | BSW | 280 | AA | A | ||
| 215/40ZR 17 XL | 87 | W | 1201 | 545 | 7.5 | 7.0~8.5 | 218 | 8.6 | 604 | 23.8 | 7.9 | 10/32 | 284 | BSW | 280 | AA | A | ||
| 205/40ZR 17 XL | 84 | W | 1102 | 500 | 7.5 | 7.0~8.0 | 212 | 8.3 | 596 | 23.5 | 7.9 | 10/32 | 280 | BSW | 280 | AA | A | ||
| 245/45ZR 17 XL | 99 | W | 1709 | 775 | 8.0 | 7.5~9.0 | 243 | 9.6 | 652 | 25.7 | 7.9 | 10/32 | 302 | BSW | 280 | AA | A | ||
| 235/45ZR 17 XL | 97 | W | 1609 | 730 | 8.0 | 7.5~9.0 | 236 | 9.3 | 644 | 25.4 | 7.9 | 10/32 | 299 | BSW | 280 | AA | A | ||
| 225/45ZR 17 XL | 94 | W | 1477 | 670 | 7.5 | 7.0~8.5 | 225 | 8.9 | 634 | 25.0 | 7.9 | 10/32 | 295 | BSW | 280 | AA | A | ||
| ⓡ | 225/45ZR 17 | 91 | W | 1356 | 615 | 7.5 | 7.0~8.5 | 225 | 8.9 | 634 | 25.0 | 7.9 | 10/32 | 295 | BSW | 280 | AA | A | |
| 215/45ZR17 XL | 91 | W | 1356 | 615 | 7.0 | 7.0~8.0 | 213 | 8.4 | 626 | 24.6 | 7.9 | 10/32 | 292 | BSW | 280 | AA | A | ||
| 205/45ZR 17 XL | 88 | W | 1235 | 560 | 7.0 | 6.5~7.5 | 206 | 8.1 | 616 | 24.3 | 7.9 | 10/32 | 288 | BSW | 280 | AA | A | ||
| 235/50ZR 17 XL | 100 | W | 1764 | 800 | 7.5 | 6.5~8.5 | 245 | 9.6 | 668 | 26.3 | 7.9 | 10/32 | 309 | BSW | 280 | AA | A | ||
| 225/50ZR 17 XL | 98 | W | 1653 | 750 | 7.0 | 6.0~8.0 | 233 | 9.2 | 658 | 25.9 | 7.9 | 10/32 | 305 | BSW | 280 | AA | A | ||
| 215/50ZR 17 XL | 95 | W | 1521 | 690 | 7.0 | 6.0~7.5 | 226 | 8.9 | 648 | 25.5 | 7.9 | 10/32 | 301 | BSW | 280 | AA | A | ||
| 245/55ZR 17 XL | 106 | W | 2094 | 950 | 7.5 | 7.0~8.5 | 253 | 10.0 | 702 | 27.6 | 7.9 | 10/32 | 322 | BSW | 280 | AA | A | ||
| 235/55ZR 17 XL | 103 | W | 1929 | 875 | 7.5 | 6.5~8.5 | 245 | 9.6 | 690 | 27.2 | 7.9 | 10/32 | 617 | BSW | 280 | AA | A | ||
| 235/65ZR 17 | 104 | H | - | - | - | - | - | - | - | - | - | - | - | BSW | - | - | - | ||
| 16 inch |
195/55r 16 XL | 91 | V | 1356 | 615 | 6.0 | 5.5~7.0 | 201 | 7.9 | 620 | 24.4 | 7.9 | 10/32 | 286 | BSW | 280 | AA | A | |
| 215/40ZR 16 XL | 86 | W | 1168 | 530 | 7.5 | 7.0~8.5 | 218 | 8.6 | 578 | 22.8 | 7.9 | 10/32 | 270 | BSW | 280 | AA | A | ||
| 205/45ZR 16 XL | 87 | W | 1201 | 545 | 7.0 | 6.5~7.5 | 206 | 8.1 | 590 | 23.2 | 7.9 | 10/32 | 275 | BSW | 280 | AA | A | ||
| 205/50ZR 16 XL | 91 | W | 1356 | 615 | 6.5 | 5.5~7.5 | 214 | 8.4 | 612 | 24.1 | 7.9 | 10/32 | 283 | BSW | 280 | AA | A | ||
| 225/55ZR 16 XL | 99 | W | 1709 | 775 | 7.0 | 6.0~8.0 | 233 | 9.2 | 654 | 25.7 | 7.9 | 10/32 | 300 | BSW | 280 | AA | A | ||
| 215/55ZR 16 XL | 97 | W | 1609 | 730 | 7.0 | 6.0~7.5 | 226 | 8.9 | 642 | 25.3 | 7.9 | 10/32 | 295 | BSW | 280 | AA | A | ||
| 205/55ZR 16 XL | 94 | W | 1477 | 670 | 6.5 | 5.5~7.5 | 214 | 8.4 | 632 | 24.9 | 7.9 | 10/32 | 291 | BSW | 280 | AA | A | ||
| ⓡ | 205/55ZR 16 XL | 91 | V | 1356 | 615 | 6.5 | 5.5~7.5 | 214 | 8.4 | 632 | 24.9 | 7.9 | 10/32 | 291 | BSW | - | - | - | |
※These data can be changed by the manufacturer without prior notice, and differently applied by regions.
※Blank space : Under develpment. Engineering data not Confirmed.
*Available at the 3rd Quarter of 2013/ⓡ Run-flat Tire
