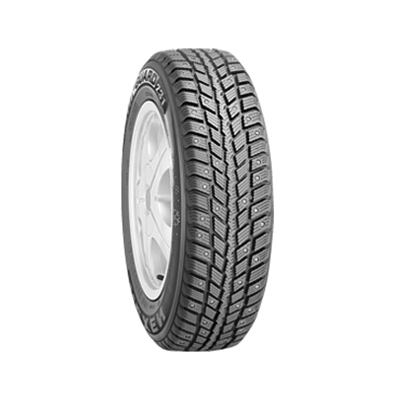

  • WINGUARD 231
    The newly conceptualized Nordic tire in the traditional studdable-type
  • • Improved drainage performance
    • Directional v-shaped pattern
    • Reinforced braking power on the snowy road
    • Improved grip power on the snowy road
    • Improved silent driving
Tire Size		 PR 5.gif
Max Load
RIM		 6.gif
Section
Width
Overall
Diameter
Tread
Depth
SLR.		 S/W
lbs kgs MEASURING APPROVED mm inch mm inch mm /32'' mm
17
inch		 215/50R 17 91 T 4 1356 615 7.0 6.0~7.5 226 8.9 648 25.5 10.6 13/32 301 BSW
215/55R 17 97 T 4 1609 730 7.0 6.0~8.0 233 9.2 680 26.8 10.3 13/32 313 BSW
16
inch		 225/50R 16 92 T 4 1389 630 7.0 6.0~8.0 233 9.2 632 24.9 10.3 13/32 291 BSW
215/55R 16 93 T 4 1433 650 7.0 6.0~7.5 226 8.9 642 25.3 10.3 13/32 295 BSW
205/55R 16 91 T 4 1356 615 6.5 5.5~7.5 214 8.4 632 24.9 10.3 13/32 291 BSW
225/60R 16 98 T 4 1653 750 6.5 6.0~8.0 228 9.0 676 26.6 10.3 13/32 308 BSW
215/60R 16 95 T 4 1521 690 6.5 6.0~7.5 221 8.7 664 26.1 10.3 13/32 304 BSW
205/60R 16 92 T 4 1389 630 6.0 5.5~7.5 209 8.2 652 25.7 10.3 13/32 299 BSW
15
inch		 195/55R 15 85 T 4 1135 515 6.0 5.5~7.0 201 7.9 595 23.4 10.3 13/32 274 BSW
215/60R 15 94 T 4 1477 670 6.5 6.0~7.5 221 8.7 639 25.2 10.3 13/32 291 BSW
195/60R 15 88 T 4 1235 560 6.0 5.5~7.0 201 7.9 615 24.2 10.3 13/32 282 BSW
205/65R 15 94 T 4 1477 670 6.0 5.5~7.5 209 8.2 647 25.5 10.3 13/32 294 BSW
195/65R 15 91 T 4 1356 615 6.0 5.5~7.0 201 7.9 635 25.0 10.3 13/32 289 BSW
185/65R 15 88 T 4 1235 560 5.5 5.0~6.5 189 7.4 621 24.4 10.3 13/32 284 BSW
14
inch		 185/60R 14 82 T 4 1047 475 5.5 5.0~6.5 189 7.4 578 22.8 10.3 13/32 264 BSW
185/65R 14 86 T 4 1168 530 5.5 5.0~6.5 189 7.4 596 23.5 10.3 13/32 271 BSW
175/65R 14 82 T 4 1047 475 5.0 5.0~6.0 177 7.0 584 23.0 10.3 13/32 267 BSW
195/70R 14 91 T 4 1356 615 6.0 5.0~6.5 201 7.9 630 24.8 10.3 13/32 285 BSW
185/70R 14 88 T 4 1235 560 5.5 4.5~6.0 189 7.4 616 24.3 10.3 13/32 279 BSW
175/70R 14 84 T 4 1102 500 5.0 4.5~6.0 177 7.0 602 23.7 10.3 13/32 274 BSW
13
inch		 175/70R 13 82 T 4 1047 475 5.0 4.5~6.0 177 7.0 576 22.7 10.3 13/32 261 BSW


WINGUARD 231  LTR

Tire Size		 PR 5.gif
Max Load
RIM		 6.gif
Section
Width
Overall
Diameter
Tread
Depth
SLR.		 S/W
lbs   kgs   MEASURING APPROVED mm inch mm inch mm /32'' mm
15
inch		 225/70R 15C 112/110 Q 8 2469 2337 1120 1060 6.5 6.0~7.0 228 9.0 697 27.4 10.3 13/32 314 BSW
195/70R 15C 104/102 Q 8 1985 1875 900 850 6.0 5.0~6.0 201 7.9 665 25.8 10.3 13/32 297 BSW
14
inch		 185R 14C 102/100 Q 8 1875 1765 850 800 5.5 5.0~6.0 188 7.4 650 25.6 10.3 13/32 293 BSW

※These data can be changed by the manufacturer without prior notice, and differently applied by regions.
