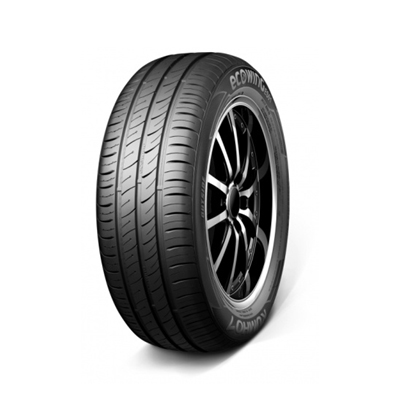

  • ECOWING ES01 KH27
    Fuel-saving tyres of the new generation
  • • Optimised rolling resistance
    • Superb wet-braking performance
    • Quiet and smooth-running
    • For small cars to compact and lower mid-class vehicles
Tire Size		 2.gif
Measuring
Rim Width
Approved
Rim Width
Max. Air
Pressure
Max Load
Section
Width
Overall
Diameter
Tread
Depth
Static
Loaded
Radius		 10.gif
Rolling
Circum-
ference
 Euro symbols
RR		 12.gif
Wet Grip		 13.gif
Noise (Db)
bar psi kg lbs mm inch mm inch mm x/32'' mm mm
205/55 R16 91H 6.5 5.5-7.5 3.5 51 615 1356 214 8.4 632 24.9 7.8 9.8 291 1928 B B 67
185/60 R14 82T 5.5 5.0-6.5 3.5 51 475 1047 189 7.4 578 22.8 7.8 9.8 265 1763 B B 68
185/60R14 82H 5.5 5.0-6.5 3.5 51 475 1047 189 7.4 578 22.8 7.8 9.8 265 1763 B B 68
185/60 R15 84T 5.5 5.0-6.5 3.5 51 500 1102 189 7.4 603 23.7 7.8 9.8 277 1839 B B 68
185/60 R15 XL 88T 5.5 5.0-6.5 3.4 50 560 1235 189 7.4 603 23.7 7.8 9.8 277 1839 B B 68
195/60R15 88H 6 5.5-7.0 3.5 51 560 1235 201 7.9 615 24.2 7.8 9.8 282 1876 B B 67
195/60 R15 88V 6 5.5-7.0 3.5 51 560 1235 201 7.9 615 24.2 7.8 9.8 282 1876 B B 67
205/60 R16 XL 96V 6 5.5-7.5 3.4 50 710 1565 209 8.2 652 25.7 7.4 9.3 299 1989 A B 69
155/65 R14 75T 4.5 4.5-5.5 3.5 51 387 853 157 6.2 558 22 7.5 9.4 257 1702 C B 68
165/65 R14 79T 5 4.5-6.0 3.5 51 437 963 170 6.7 570 22.4 7.8 9.8 261 1739 C B 68
175/65 R14 82T 5 5.0-6.0 3.5 51 475 1047 177 7 584 23 7.8 9.8 267 1781 B B 68
185/65 R14 86T 5.5 5.0-6.5 3.5 51 530 1168 189 7.4 596 23.5 7.8 9.8 272 1818 B B 68
185/65 R14 86H 5.5 5.0-6.5 3.5 51 530 1168 189 7.4 596 23.5 7.8 9.8 272 1818 B B 68
175/65 R15 84H 5 5.0-6.0 3.5 51 500 1102 177 7 609 24 7.8 9.8 279 1857 B B 68
185/65 R15 88T 5.5 5.0-6.5 3.5 51 560 1235 189 7.4 621 24.4 7.8 9.8 284 1894 B B 68
185/65 R15 88H 5.5 5.0-6.5 3.5 51 560 1235 189 7.4 621 24.4 7.8 9.8 284 1894 B B 68
195/65 R15 91T 6 5.5-7.0 3.5 51 615 1356 201 7.9 635 25 7.8 9.8 290 1937 B B 67
195/65 R15 91H 6 5.5-7.0 3.5 51 615 1356 201 7.9 635 25 7.4 9.3 290 1937 A B 67
195/65 R15 91V 6 5.5-7.0 3.5 51 615 1356 201 7.9 635 25 7.8 9.8 290 1937 B B 67
215/65 R16 98H 6.5 6.0-7.5 3.5 51 750 1653 221 8.7 686 27 7.8 9.8 312 2092 A B 69
165/70 R14 81T 5 4.0-5.5 3.5 51 462 1019 170 6.7 588 23.1 7.8 9.8 268 1793 C B 68
175/70 R14 84T 5 4.5-6.0 3.5 51 500 1102 177 7 602 23.7 7.8 9.8 274 1836 B B 68
165/60 R14 75H 5 4.5-6.0 3.5 51 387 853 170 6.7 554 21.8 7.4 9.3 255 1690
175/60 R14 79T 5 5.0-6.0 3.5 51 437 963 177 7.0 566 22.3 7.4 9.3 260 1726
175/65 R14 82H 5 5.0-6.0 3.5 51 475 1047 177 7.0 584 23.0 7.8 9.8 267 1781
175/70 R14 88T XL 5 4.5-6.0 3.4 50 560 1235 177 7.0 602 23.7 7.4 9.3 274 1836
175/70 R14 84H 5 4.5-6.0 3.5 51 500 1102 177 7.0 602 23.7 7.8 9.8 274 1836
175/80 R14 88T 6 5.5-7.0 3.5 51 560 1235 177 7.0 636 25.0 7.4 9.3 287 1940
185/55 R14 80H 6 5.0-6.5 3.5 51 450 992 194 7.6 560 22.0 7.6 9.6 258 1708
185/70 R14 88H 5.5 4.5-6.0 3.5 51 560 1235 189 7.4 616 24.3 7.6 9.6 279 1879
185/70 R14 88T 53.5 4.5-6.0 3.5 51 560 1235 189 7.4 616 24.3 7.6 9.6 279 1879
195/60 R14 86H 6 5.5-7.0 3.5 51 530 1168 201 7.9 590 23.3 7.6 9.6 269 1800
195/65 R14 89H 6 5.5-7.0 3.5 51 580 1279 201 7.9 310 24.0 7.6 9.6 277 1861
198/70 R14 91H 6 5.0-6.5 3.5 51 615 1356 201 7.9 630 24.8 7.6 9.6 285 1922
145/65 R65 72T 4.5 4.0-5.0 3.5 51 355 783 150 5.9 569 22.4 7.3 9.2 264 1735
165/65 R15 61H 5 4.5-6.0 3.5 51 462 1019 170 6.7 595 23.4 7.4 9.3 274 1815
175/50 R15 75H 5.5 5.0-6.0 3.5 51 387 853 182 7.2 557 21.9 7.6 9.6 259 1699
175/55 R15 77T 5.5 5.0-6.0 3.5 51 415 915 182 7.2 573 22.6 7.6 9.6 265 1748
175/60 R15 81H 5 5.0-6.0 3.5 51 462 1019 177 7.0 591 23.3 7.4 9.3 272 1803
175/65 R15 84T 5 5.0-6.0 3.5 51 500 1102 177 7.0 609 24.0 7.4 9.3 279 1857
185/55 R15 82H 6 5.0-6.5 3.5 51 475 1047 194 7.6 585 23.0 7.6 9.6 270 1784
195/50 R15 82H 6 5.5-7.0 3.5 51 475 1047 201 7.9 577 22.7 7.6 9.6 267 1760
195/55 R15 85H 6 5.5-7.0 3.5 51 515 11635 201 7.9 595 23.4 7.6 9.6 274 1815
205/60 R15 91H 6 5.5-7.5 3.5 51 615 1356 209 8.2 627 24.7 7.6 9.6 286 1912
205/60 R15 91V 6 5.5-7.5 3.5 51 615 1356 209 8.2 627 24.7 7.6 9.6 286 1912
205/65 R15 94H 6 5.5-7.5 3.5 51 670 1477 209 8.2 641 25.5 7.6 9.6 294 1973
215/65 R15 96H 6.5 6.0-7.5 3.5 51 710 1565 221 8.7 661 26.0 7.6 9.6 300 2016
195/50 R16 84H 6 5.5-7.0 3.5 51 500 1102 201 8.9 602 23.7 7.6 9.6 279 1836
195/55 R16 87H 6 5.5-7.0 3.5 51 545 1202 201 8.9 620 24.4 7.6 9.6 287 1891
215/60 R16 95V 6.5 6.0-7.5 3.5 51 690 1521 221 8.7 664 26.1 7.6 9.6 304 2025
225/70 R16 103H 6.5 6.0-7.5 3.5 51 875 1929 228 9.0 722 28.4 7.6 9.6 326 2202
235/60 R16 100H 7 6.5-8.5 3.5 51 800 1764 240 9.4 688 27.1 7.6 9.6 313 2098
235/55 R17 99H 7.5 6.5-8.5 3.5 51 775 1709 245 9.6 690 27.2 7.6 9.6 317 2105
